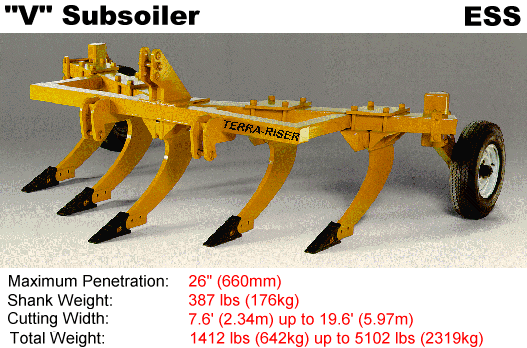

Terra-Riser Series ESS V-Subsoiler

Maximum Penetration: 26" (660 mm) - Weight per Shank 387lbs (176 kg)

Specifications:

Model	Total Width (in)	Total Length (in)	Number of Shanks	Weight (lbs)
ESS 3-1 ESS 3-2 ESS 3-3 ESS 5-3 ESS 5-4 ESS 5-5 ESS 7-5 ESS 7-6 ESS 7-7	92 (2340 mm) 92 (2340 mm) 92 (2340 mm) 151 (3830 mm) 151 (3830 mm) 151 (3830 mm) 235 (5970 mm) 235 (5970 mm) 235 (5970 mm)	75 (1900 mm) 75 (1900 mm) 75 (1900 mm) 53 (2350 mm) 53 (2350 mm) 53 (2350 mm) 117 (2970 mm) 117 (2970 mm) 117 (2970 mm)	1 2 3 3 4 5 5 6 7	1412 1800 2187 2926 3313 3700 4327 4715 5102

Heavy duty structural steel angled frame for better impact

Heavy duty welded A-frame three point hitch

Gauge wheels provide depth control

Reversable high wear plow points

Parabolic shanks cause less resistance during fracturing of soil for better penetration and productivity

Heavy duty shear bolt for protection against major impact

Maximum penetration 26" (660 mm)

Adjustable shank spacing

Applications:

Deep fracturing of highly compacted soil

Conditions soil for better retention and absorption of water

Conditions soil to facilitate drainage during heavy rains

Formation of capillary tubes in soil
