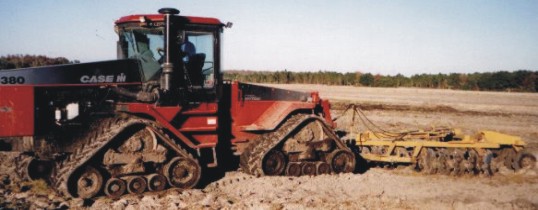

Terra-Riser Series ERH 2836 Harrow

Click here to see the entire list of ERH harrows available

Heavy Duty Hinge Offset Harrow
14" (356 mm) Disc Spacing: 2 1/2" (63.5 mm) round axles equipped with Timken bearings
6"x10" steel tubing main frame

Specifications:

Model	Number of Discs	Cutting Width (ft)	HP Motor Req'd*	Weight (lbs)
ERH 2836	(28) - 36"x1/2" Disks	16' 8"	375-420	14,520

Heavy duty structural steel mainframe

Mechanical or hydraulic disc angle adjustment

High clearance to prevent clogging

2 1/2" high strength round axles

Heavy duty US made Timken roller bearing assemblies

^* Horsepower may vary according to soil conditions or difficult terrain.

Applications:

Land preparation in heavy soils and thick vegetation

Construction and road building

Tilling new ground and recently deforested land

Deep tillage

Standard Equipment:

36" diameter, 1/2" thick, cutout disk blades

Heat Treated Alloy Steel Axles

Hydraulic offset (includes hydraulic cylinder)

Steel spools and scrapers

What makes our harrows better? We use the heavy duty Timken Roller Bearing in all our harrows - this bearing provides reliability as well as easy serviceability for the life of your Terra-Riser harrow.
