The ECW features the Heavy Duty Timken Roller Bearing
Making farming easier Fireline & Forestry Equipment

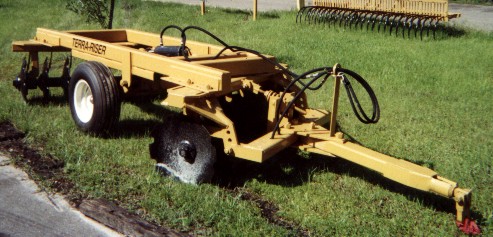

Terra-Riser Series ECW Harrows

Wheel Offset Harrow
9 1/2" Disc Spacing: 1 5/8" (41.3 mm) axle - Weight per disc: 190 lbs average

Specifications:

Model Number of Discs Cutting Width (ft) HP Motor Req'd* Tires
Number x Size
Weight (lbs)
ECW 16-24
ECW 20-24
ECW 24-24
ECW 28-24
ECW 32-24
ECW 36-24
ECW 40-24
ECW 48-24
16
20
24
28
32
36
40
48
6' 6"
8'
9' 6"
11'
12' 8"
14'
15' 8"
19'
90-105
105-115
120-130
135-145
150-160
165-180
200-220
240-260
2 x 7.50-16
2 x 7.50-16
2 x 7.50-16
2 x 7.50-16
2 x 7.50-16
4 x 7.50-16
4 x 7.50-16
4 x 7.50-16
3,450
3,656
4,272
5,159
5,513
7,031
7,636
7,935

  • Heavy duty structural steel mainframe
  • 1 5/8" high strength round axles
  • Heavy duty US made Timken roller bearing assemblies


  • Model EBW with 11" disc spacing: 1 5/8" (41.3) axle: Weight per disc 220 lbs average also available.
    * Horsepower may vary according to soil conditions or difficult terrain.

    Applications:ECW

  • Soil preparation for planting
  • Pulverization
  • Aeration
  • Standard Equipment:

  • Hydraulic wheel lift and tongue leveling
  • Steel disc scrapers
  • Notched disc dimensions:
       24" (610 mm) diameter
       1/4" (6.35 mm) thickness
  • Optional Equipment:

  • Notched disc dimensions:
       26" (660 mm) diameter
       1/4" (6.35 mm) thickness

  • ECW


    What makes our harrows better?

    We use the heavy duty Timken Roller Bearing in all our harrows - this bearing provides reliability as well as easy serviceability for the life of your Terra-Riser harrow.

    Timken Bearing
