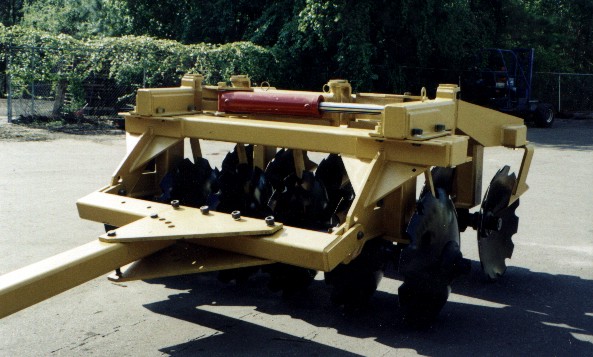

Terra-Riser Series ERCH Harrows

Heavy Duty Hinge Offset Harrow
20" (508 mm) Disc Spacing: 2 1/2" (63.5 mm) axle - Weight per disc: 750 lbs average

Specifications:

Model	Number of Discs	Cutting Width (ft)	HP Motor Req'd*	Weight (lbs)
ERCH 10-36 ERCH 12-36 ERCH 16-36 ERCH 20-36	10 12 16 20	8' 4" 10' 13' 4" 16' 8"	220-240 260-300 330-360 375-420	8,250 9,020 11,836 13,640

Heavy duty structural steel mainframe

Mechanical or hydraulic disc angle adjustment

High clearance to prevent clogging

2 1/2" high strength round axles

Heavy duty US made Timken roller bearing assemblies

^* Horsepower may vary according to soil conditions or difficult terrain.

Applications:

Land preparation in heavy soils and thick vegetation

Construction and road building

Tilling new ground and recently deforested land

Deep tillage

Standard Equipment:

Hydraulic angle adjustment

Steel disc scrapers

36" diameter, 1/2 thick notched discs

Optional Equipment:

Heavy duty wear plates

42" x 1/2" notched discs

What makes our harrows better? We use the heavy duty Timken Roller Bearing in all our harrows - this bearing provides reliability as well as easy serviceability for the life of your Terra-Riser harrow.
